"M" Pin Type DSL Busbar System

These conductor are compact, insulated, easy to installation, in horizontal or vertical configuration.They require much less space compared to conventional bar conductor systems

The conductor bars are 4 meter long to be supported at every 1 meter effecting considerable savings in installation. Conductor are easily assembled at site with use of a jointing tool. All bars are supplied with connecting pins.

Design allows uni/multi pole mounting arrangement. Conductor can be mounted side by min. centre distance 30 mm.

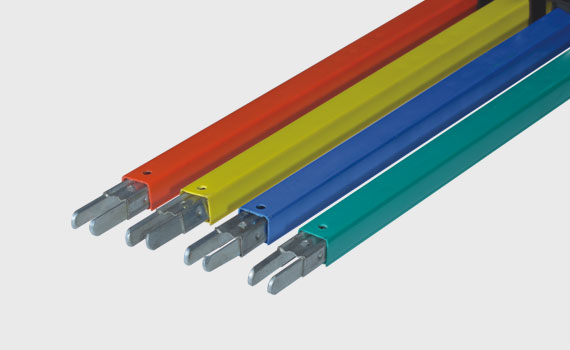

GI Pin Type DSL Busbar

GI Pin Type DSL Busbar

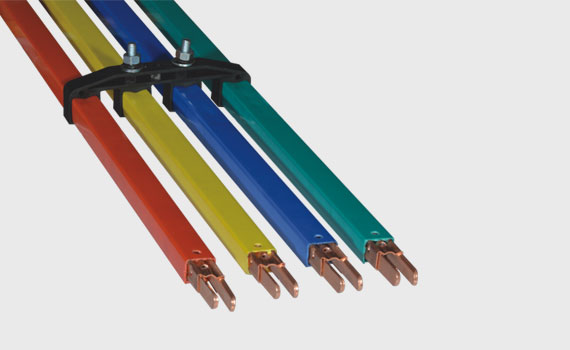

Copper Pin Type DSL Busbar

Copper Pin Type DSL Busbar


  • Single Pole Hanger Clamp

    Single Pole Hanger Clamp

    Moulded Plastic Snap-On Type Support

  • Four Pole Hanger Clamp

    Four Pole Hanger Clamp

    Moulded Plastic Snap-On Type Support

  • Splice Cover

    Splice Cover

    Moulded Plastic One Piece Clip-On Cover

  • Kit Comprising Power Feed Clamp

    Center Power Feed Kit

    Kit Comprising Power Feed Clamp

  • End Cup

    End Cup

    Kit Comprising Stop Bolt and PVC Push-On Insulating Cover

  • Jointing Tool

    Jointing Tool

    Special Assembly Tool Required To Connect Bars On Site

  • Anchor Clamp

    Anchor Clamp

    Moulded Plastic Snap-On Type With Self Anchoring Feature.For Use at Anchor Points
